allowed case start activities

Overview

The enrichment defines conformance issues if a case does not start with one of the selected activities. Conformance checking helps identify process deviations by validating that cases follow expected patterns. By controlling which activities can start a case, you can ensure your processes begin correctly and identify cases that don't follow standard procedures.

Common Uses

To specify the list of allowed activities a case can start with

Settings

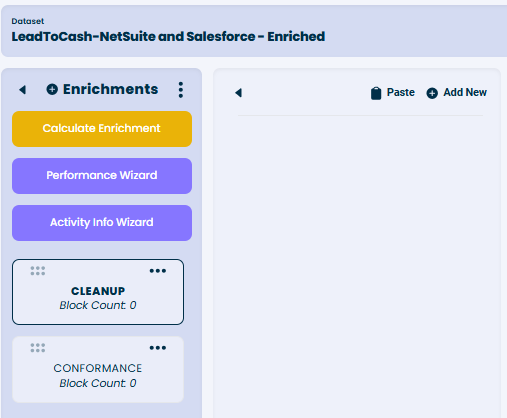

Start by going to the 'Log Enrichment' engine by going to any analysis and clicking 'Log Enrichment' in the top right.

Log Enrichment navigation

Then click 'Add New'

Add New enrichment

Then choose the enrichment block.

Choose Allowed Case Start Activities enrichment

Configuration Options

Rule Name: Specify the name of the new attribute you are about to create.
Severity: Select the severity of conformance issue if the case starts with a wrong activity.
Activity Attribute Values: Select the activities that your cases are allowed to start with.

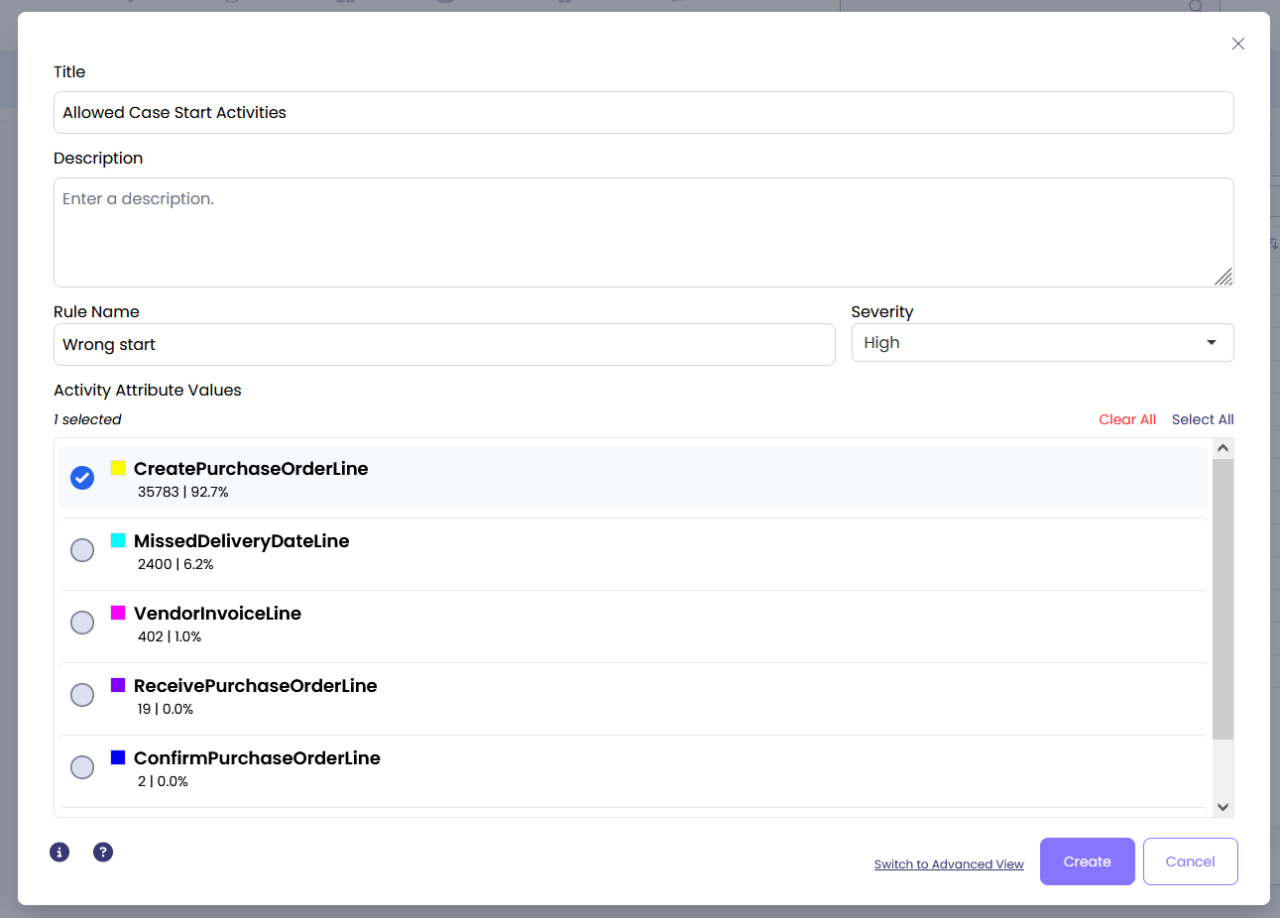

Example configuration

Examples

In this example, we configure the enrichment to ensure cases start with approved entry points. Any case starting with a different activity will be flagged as a conformance issue.

To specify the activities that our cases are allowed to start with, configure the settings as shown above, then click 'Create' and once you're ready click 'Calculate Enrichment' to add the new attribute to your data set.

Output

When this enrichment is executed, it creates a new Boolean case attribute with the name you specified in "Rule Name". The attribute value will be:

TRUE: If the case starts with an activity that is NOT in your allowed list (conformance issue detected)
FALSE: If the case starts with one of the allowed activities (no conformance issue)
