Overview
The enrichment defines conformance issues if a case does not end with one of the selected activities.
Common Uses
To specify the list of allowed activities a case can end with
Settings

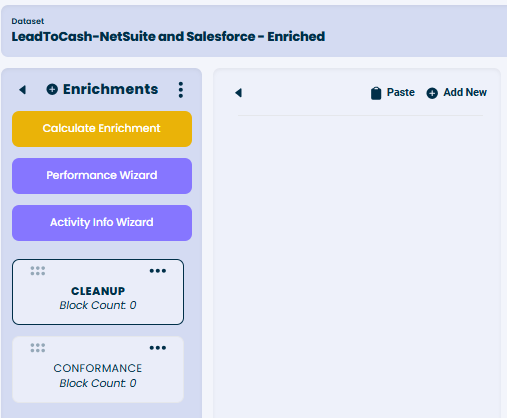

Start by going to the 'Log Enrichment' engine by going to any analysis and clicking 'Log Enrichment' in the top right.
Then click 'Add New'
Then choose the enrichment block.

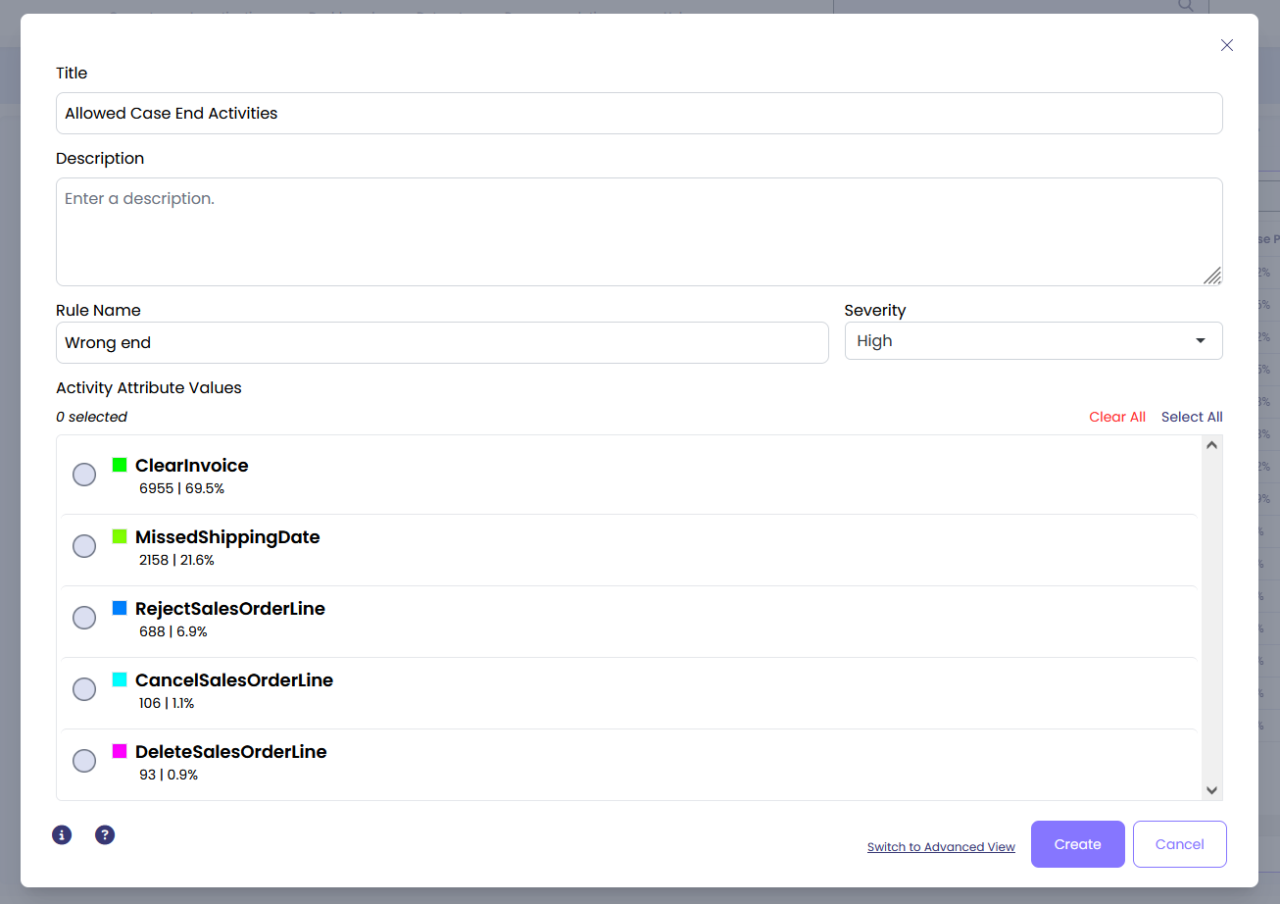

Configuration Options
- Rule Name: Specify the name of the new attribute you are about to create.
- Severity: Select the severity of conformance issue if the case ends with a wrong activity.
- Activity Attribute Values: Select the activities that your cases are allowed to end with.
Examples
In this example, we configure the enrichment to ensure cases end with approved activities such as "Close Case", "Archive Order", or "Complete Process". Any case ending with a different activity will be flagged as a conformance issue.
Click 'Create' and once you're ready click 'Calculate Enrichment' to add the new attribute to your data set.
Output
When this enrichment is executed, it creates a new Boolean case attribute with the name you specified in "Rule Name". The attribute value will be:
- TRUE: If the case ends with an activity that is NOT in your allowed list (conformance issue detected)
- FALSE: If the case ends with one of the allowed activities (no conformance issue)
The severity level you select determines how this conformance issue is categorized in conformance analysis dashboards and reports. Cases with conformance issues can be filtered and analyzed to understand process deviations.
See Also
Related Conformance Enrichments:
- Allowed Case Start Activities - Define conformance issues for case start activities
- Repeated Activity - Detect when activities are repeated in a case
- Mandatory Activity - Ensure required activities are performed
- Undesired Activity - Flag cases containing unwanted activities
- Wrong Activity Order - Detect activities performed in incorrect sequence
Related Topics:
- Conformance Experiments - Overview of conformance analysis in mindzieStudio
- Process Discovery - Understanding your process before applying conformance rules
