BPMN Conformance

Overview

BPMN Conformance checking compares your actual process data against a designed BPMN process model. It analyzes every case in your event log and determines whether each case follows the expected process flow defined in your BPMN model.

This feature is configured during the Dataset Upload wizard when you load your event log into mindzieStudio.

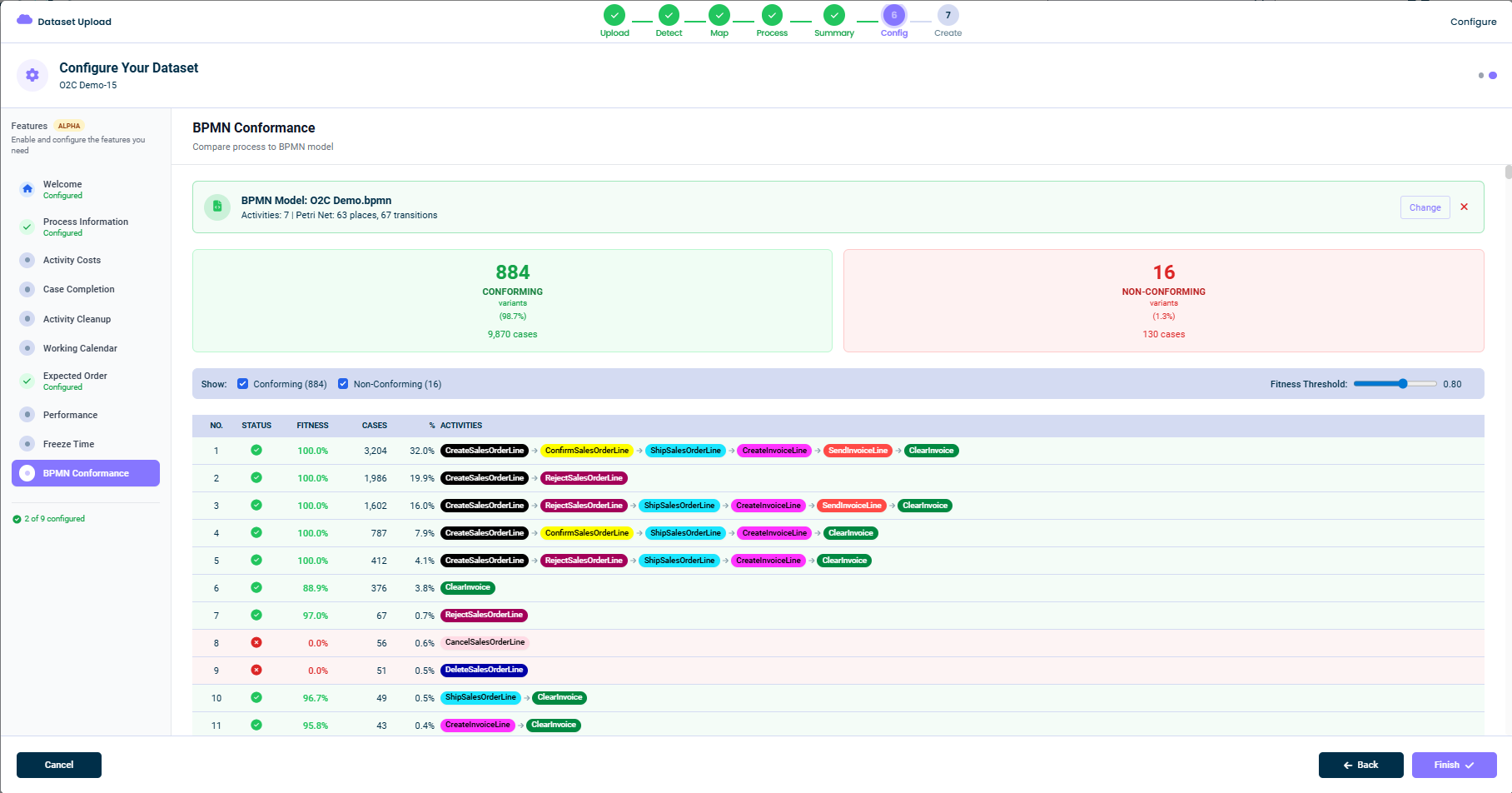

BPMN Conformance configuration in the Dataset Upload wizard

This feature uses Petri Net token replay for accurate conformance checking. Unlike simple sequence matching, token replay correctly handles:

Parallel gateways (AND): All branches must be executed
Exclusive gateways (XOR): Only one branch should be taken
Inclusive gateways (OR): One or more branches can be taken

Common Uses

Process Compliance: Verify that cases follow the standard operating procedure defined in your BPMN model
Deviation Analysis: Identify cases that deviate from the expected process flow
Quality Control: Flag non-conforming cases for review or remediation
Continuous Improvement: Track conformance rates over time to measure process improvement
Audit Support: Provide evidence of process compliance for internal or external audits

How to Configure

Step 1: Access Dataset Configuration

During the dataset upload wizard, navigate to the Configure step (step 6 of 7). In the left sidebar, select BPMN Conformance.

Step 2: Upload Your BPMN Model

Click the upload area to select a BPMN 2.0 file from your computer.

Supported formats:

.bpmn - Standard BPMN 2.0 files
.xml - XML files containing BPMN 2.0 definitions

File requirements:

Maximum file size: 10 MB
Must be valid BPMN 2.0 XML format

Step 3: Review Conformance Results

After uploading, the system immediately analyzes your data against the BPMN model and shows:

Summary boxes: Count of conforming vs non-conforming variants
Variant list: Each process variant with its fitness score and conformance status
Activity sequence: Visual display of activities in each variant

Step 4: Adjust Fitness Threshold (Optional)

Use the Fitness Threshold slider to adjust what counts as "conforming":

1.0 (100%): Only perfect matches are conforming
0.8 (80%): Cases with fitness 80% or higher are conforming (recommended)
0.5 (50%): More lenient - cases with moderate deviations still count as conforming

Step 5: Save Configuration

Click Save Configuration to store the BPMN model. The conformance check will run automatically every time your data is refreshed.

Output Attributes

When this enrichment runs, it adds four new attributes to each case in your event log:

BPMN Conforming (Yes/No)

Attribute	Details
Column Name	`~enrich~BpmnConforming`
Display Name	BPMN Conforming
Data Type	Boolean (Yes/No)

What it means:

Yes: This case follows the BPMN model (fitness score meets or exceeds the threshold)
No: This case deviates from the BPMN model

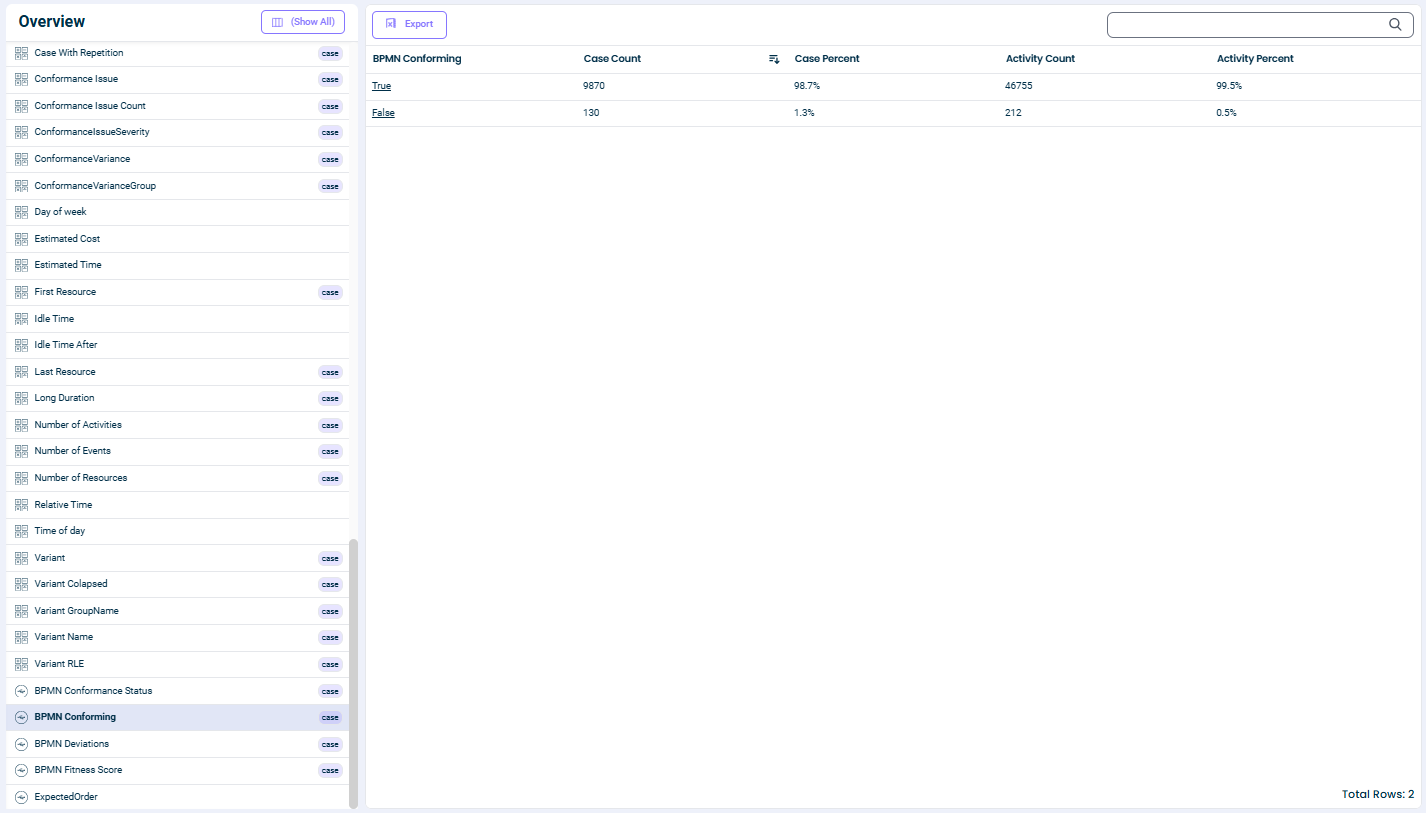

BPMN Conforming attribute showing True/False values with case counts

BPMN Fitness Score (0% - 100%)

Attribute	Details
Column Name	`~enrich~BpmnFitness`
Display Name	BPMN Fitness Score
Data Type	Percentage

What it means:

100%: Perfect conformance - the case exactly follows the BPMN model
90-99%: Minor deviations - the case mostly follows the model
70-89%: Moderate deviations - some activities are missing or out of order
Below 70%: Major deviations - significant differences from the expected flow

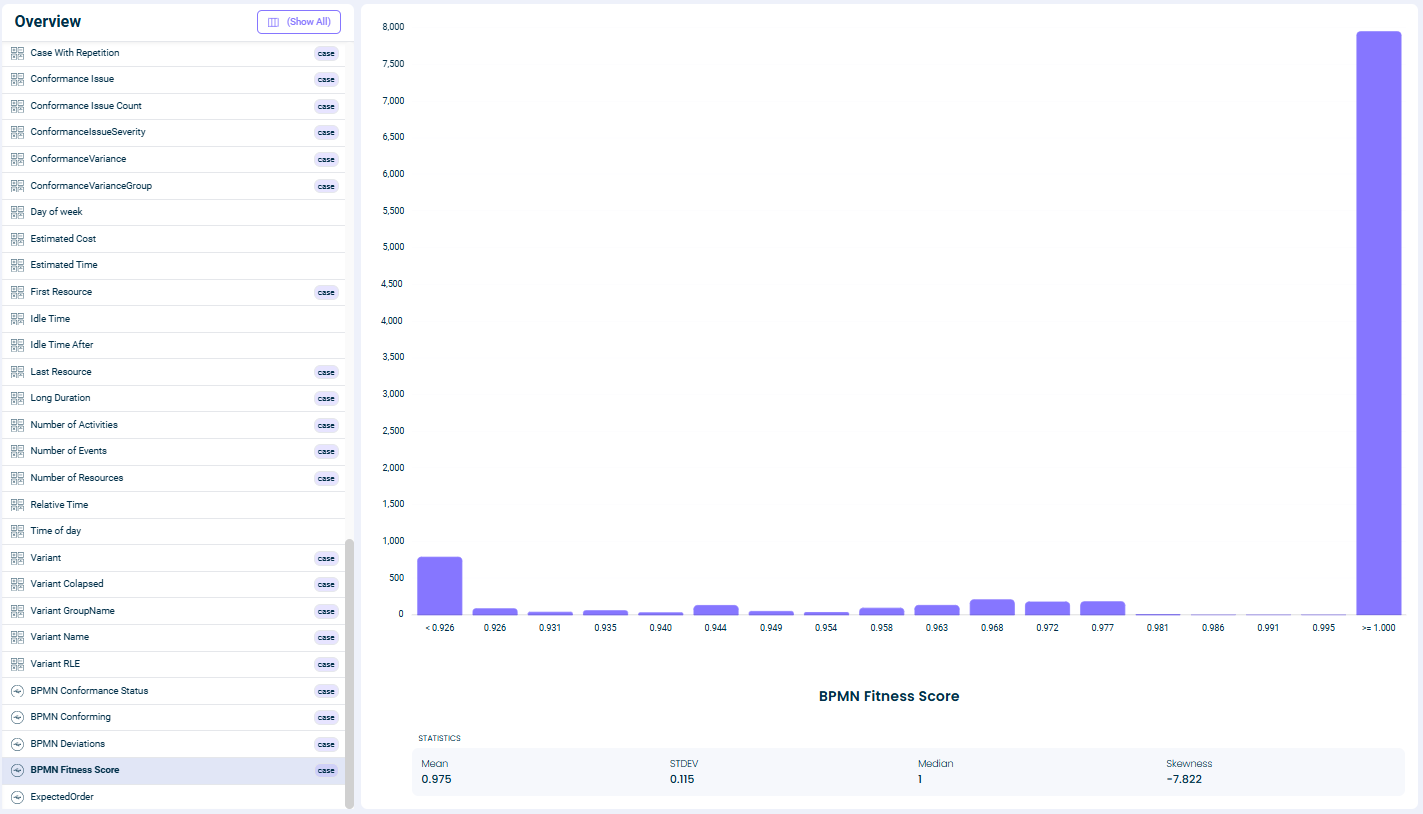

BPMN Fitness Score distribution showing histogram and statistics

BPMN Conformance Status (Text)

Attribute	Details
Column Name	`~enrich~BpmnConformanceStatus`
Display Name	BPMN Conformance Status
Data Type	Text

Possible values: | Fitness Score | Status | |---------------|--------| | 100% | Perfect | | 90% - 99% | Minor Deviations | | 70% - 89% | Moderate Deviations | | Below 70% | Major Deviations |

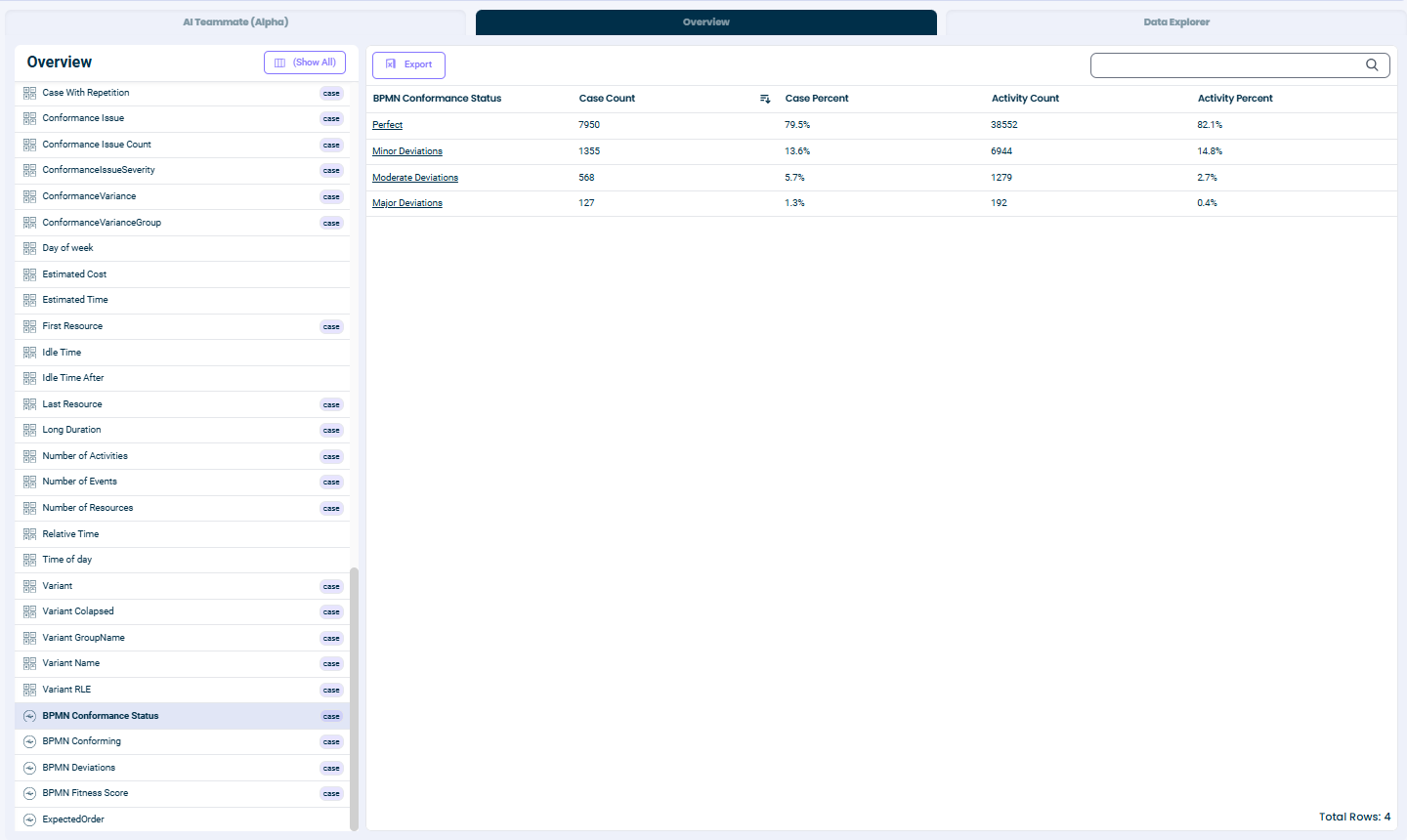

BPMN Conformance Status showing categories: Perfect, Minor Deviations, Moderate Deviations, Major Deviations

BPMN Deviations (Text)

Attribute	Details
Column Name	`~enrich~BpmnDeviations`
Display Name	BPMN Deviations
Data Type	Text

What it contains:

Lists the activity transitions that failed during token replay
Shows up to 5 problematic transitions, separated by semicolons
Empty if the case has perfect conformance

Example values:

(empty) - No deviations
Submit for Approval - One missing activity
Receive Goods; Invoice Match; Pay Invoice - Multiple deviations

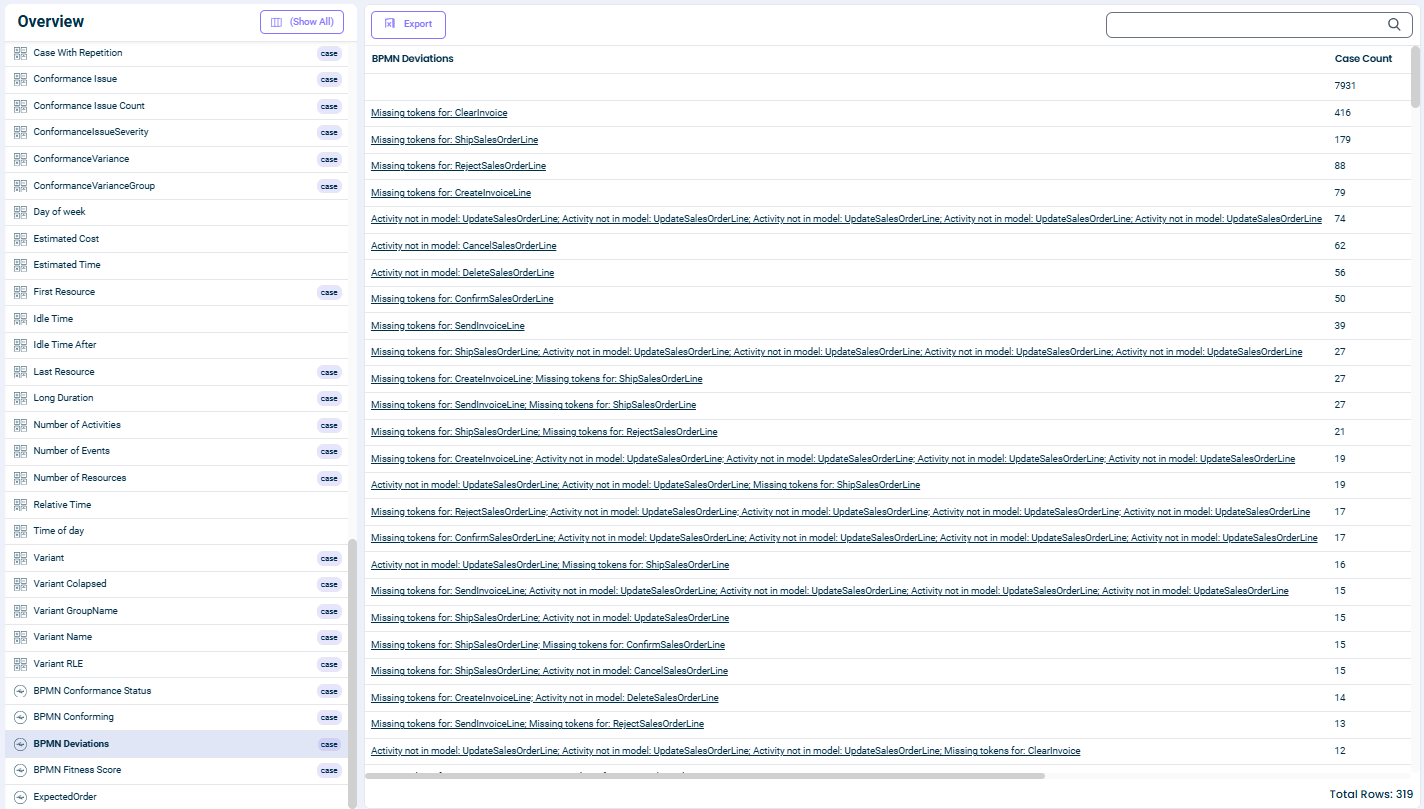

BPMN Deviations showing specific deviation details for each case

Example Output

After running BPMN Conformance on an Order-to-Cash process, your case table might look like this:

Case ID	BPMN Conforming	BPMN Fitness Score	BPMN Conformance Status	BPMN Deviations
PO-001	Yes	100%	Perfect
PO-002	No	65%	Major Deviations	Receive Goods; Invoice Match
PO-003	Yes	92%	Minor Deviations	Post Invoice
PO-004	Yes	100%	Perfect
PO-005	No	45%	Major Deviations	Submit for Approval; Approve; Receive Goods

Using Conformance Results

Once the conformance attributes are added to your data, you can:

Filter Cases

Show only non-conforming cases: Filter where BPMN Conforming = No
Find severe deviations: Filter where BPMN Fitness Score < 70%

Create Dashboards

Add a pie chart showing conforming vs non-conforming case counts
Track conformance rate over time with a trend chart
Compare conformance across different vendors, regions, or case types

Analyze Root Causes

Use the Deviations attribute to identify common problematic activities
Compare conforming vs non-conforming cases by attribute values
Identify patterns in which cases tend to deviate

Set Up Alerts

Create alerts when conformance rate drops below a threshold
Notify stakeholders when specific cases fail conformance

Understanding Token Replay

Token replay is a conformance checking algorithm that simulates executing each case through your BPMN model:

A "token" is placed at the start of the process
For each activity in the case, the algorithm tries to move the token through the corresponding transition in the BPMN model
If the transition can fire (the token is in the right place), it succeeds
If the transition cannot fire (the token is missing), it's recorded as a deviation
At the end, the algorithm checks if the token reached the final state

Fitness is calculated as:

Fitness = 1 - (missing tokens + remaining tokens) / (produced tokens + consumed tokens)

This gives a score from 0.0 (no conformance) to 1.0 (perfect conformance).
