subtract

Overview

The Subtract enrichment performs mathematical subtraction between two numeric attributes and stores the result in a new attribute. This is useful for calculating differences, variances, and deltas in your process data.

Common Uses

Calculate the difference between quantities ordered and quantities received
Determine the variance between planned and actual values (budget, time, resources)
Calculate net changes by subtracting initial values from final values
Compute deltas between expected and actual performance metrics

Settings

Start by going to the 'Log Enrichment' engine by going to any analysis and clicking 'Log Enrichment' in the top right.

Then click 'Add New'

Then choose the Subtract enrichment block.

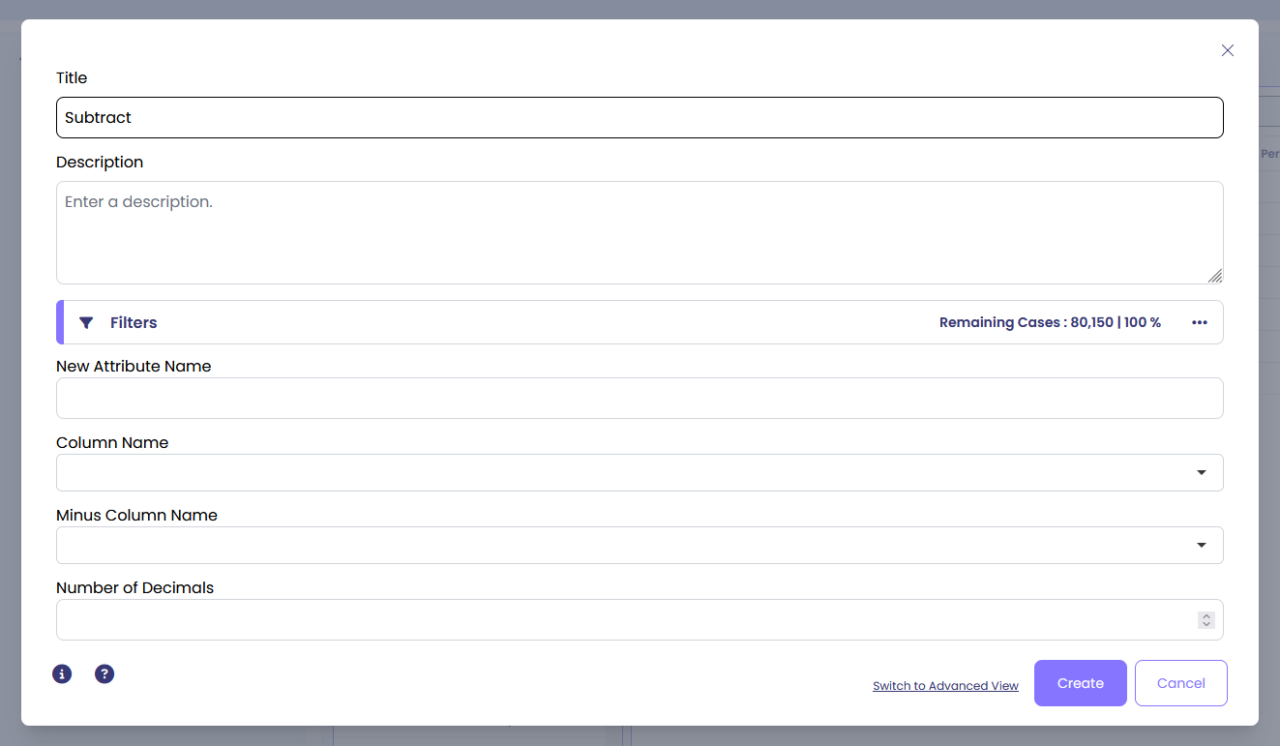

Configuration Options

Filters: Add any filter you like. The enrichment will define attributes only for cases that are selected by the filter.
New Attribute Name: Specify the name of the new attribute you are about to create.
Column Name: Select the attribute that needs to be subtracted from (the minuend).
Minus Column Name: Select the attribute that represents the value that needs to be subtracted (the subtrahend).
Number of Decimals: Specify the number of decimal points to show in the new attribute.

Examples

Example 1: Calculate Quantity Difference

In a purchase order process, you may want to calculate the difference between quantity ordered and quantity received to identify discrepancies.

Scenario:

Your event log contains attributes: QuantityOrdered and QuantityReceived
You want to create a new attribute QuantityDifference showing the variance
The result should show 2 decimal places for precision

Configuration:

New Attribute Name: QuantityDifference
Column Name: QuantityOrdered
Minus Column Name: QuantityReceived
Number of Decimals: 2

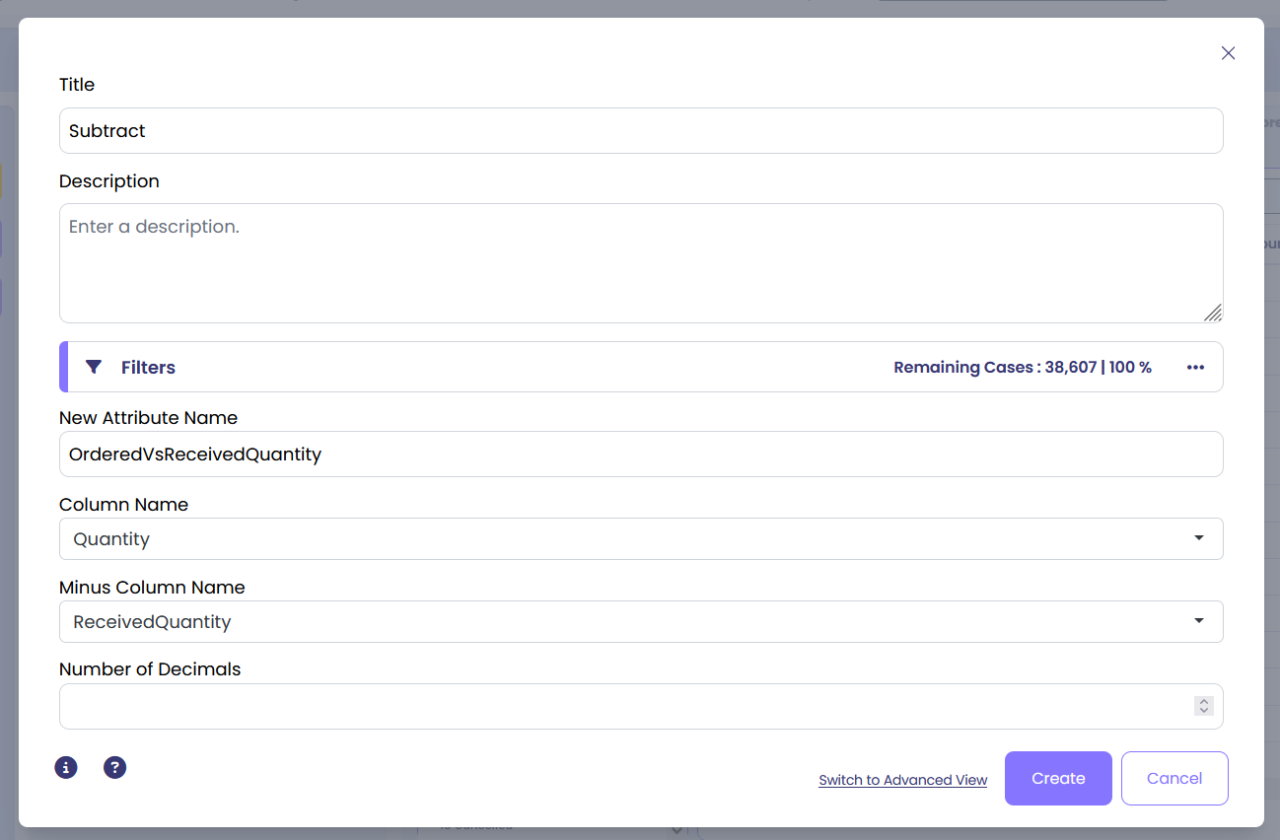

Subtract Enrichment Settings

Click 'Create' and once you're ready click 'Calculate Enrichment' to add the new attribute to your data set.

From the overview, you should now be able to find the newly created attribute:

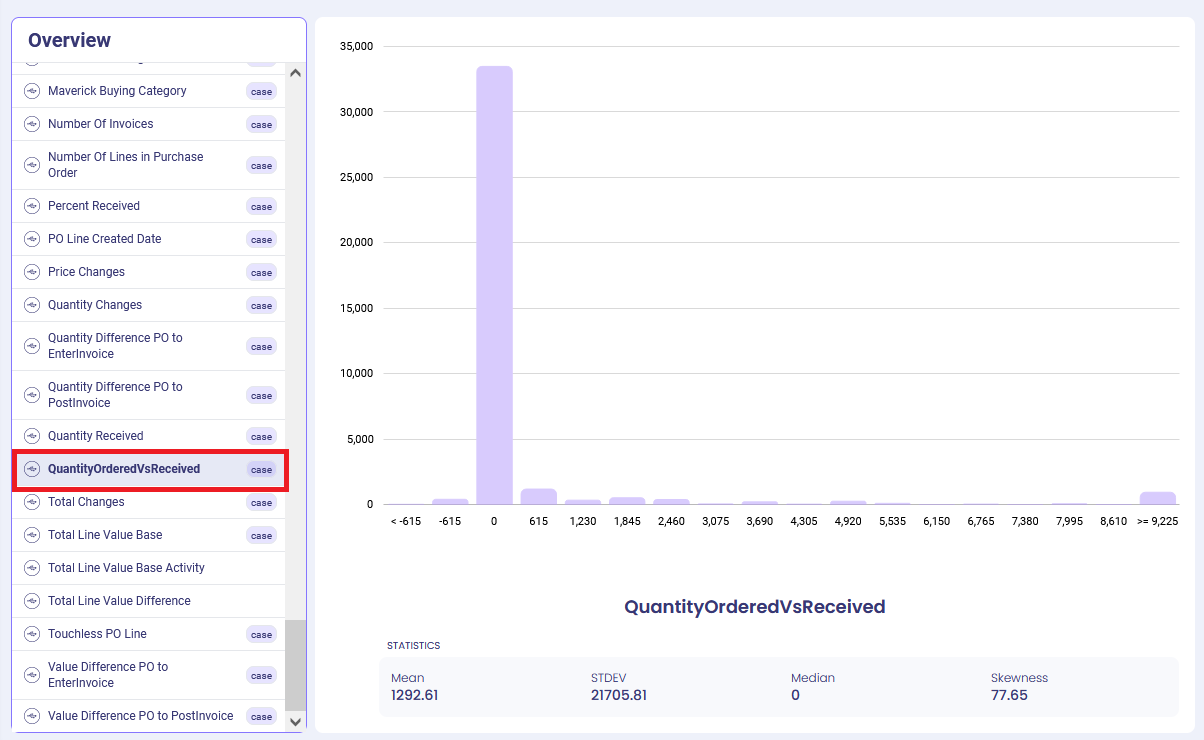

Newly Created Subtract Attribute in Overview

Result: A positive value indicates more was ordered than received, while a negative value indicates more was received than ordered.

Subtract Calculation Result Example

Output

When this enrichment is executed, it creates a new numeric case or event attribute with the name you specified in "New Attribute Name". The attribute value contains the result of subtracting the "Minus Column Name" value from the "Column Name" value.

The result is formatted to the number of decimal places you specified in "Number of Decimals".

Formula: Result = Column Name - Minus Column Name

Example: If Column Name = 100 and Minus Column Name = 25, the new attribute will contain 75.

Null Handling: Cases where either attribute is empty or null will not have a calculated value in the new attribute.

Data Type: Both attributes must contain numeric values. Non-numeric values will result in calculation errors.
