duration between two activities

Overview

The Duration Between Two Activities enrichment calculates the time elapsed between two selected activities within a case and adds this duration as a new case attribute. You can specify whether to use the first or last occurrence of each activity, making this enrichment flexible for analyzing different process patterns. This is valuable for performance analysis, bottleneck identification, and SLA monitoring.

Common Uses

Invoice Processing: Calculate cycle time from "Enter Invoice" to "Pay Invoice" to measure payment processing speed
Order Fulfillment: Measure duration from "Order Placed" to "Shipment Sent" for delivery performance
Approval Workflows: Track time between "Request Submitted" and "Approval Granted" to identify approval delays
Support Tickets: Monitor resolution time from "Ticket Created" to "Ticket Closed" for customer service metrics

Settings

Start by going to the 'Log Enrichment' engine by going to any analysis and clicking 'Log Enrichment' in the top right.

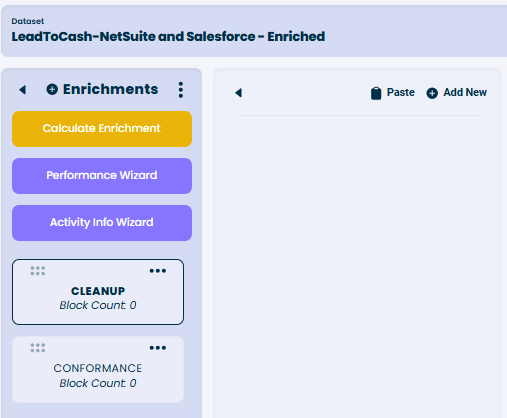

Log Enrichment navigation

Then click 'Add New'

Add New enrichment button

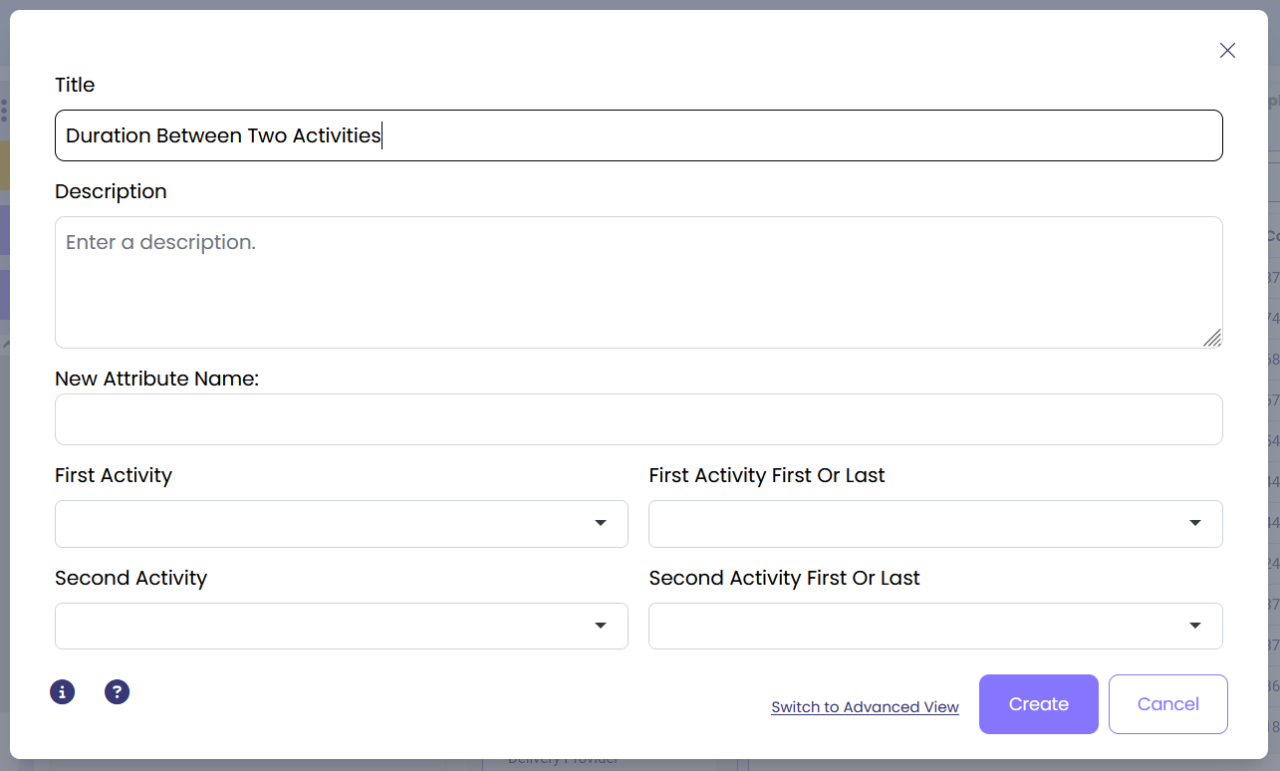

Then choose the enrichment block.

Configuration Options

New Attribute Name: Specify the name of the new duration attribute that will be created in your dataset
First Activity: Select the activity that marks the start point for duration calculation
First Activity First or Last: Choose whether to use the 'First' or 'Last' occurrence of this activity in the case
Second Activity: Select the activity that marks the end point for duration calculation
Second Activity First or Last: Choose whether to use the 'First' or 'Last' occurrence of this activity in the case

Choosing First vs. Last Occurrence:

Use First occurrence when you want to measure from the initial instance of an activity
Use Last occurrence when you want to measure to/from the final instance of an activity
Example: For "First occurrence of Order Created" to "Last occurrence of Payment Received" measures total order-to-payment cycle including any retries

Examples

To calculate the duration between enter invoice and post invoice, use the following settings:

Duration enrichment configuration dialog

In this example:

New Attribute Name: "Invoice_Processing_Time"
First Activity: "Enter Invoice" (using First occurrence)
Second Activity: "Post Invoice" (using First occurrence)

Click 'Create' and once you're ready click 'Calculate Enrichment' to add the new attribute to your data set.

Result showing duration column added to event log

The new duration attribute is now available in your dataset for analysis, filtering, and visualization.

Output

When this enrichment is executed, it creates a new case attribute with the name you specified in "New Attribute Name". The attribute contains:

Data Type: Numeric (decimal)
Units: Duration in hours
Value: The time elapsed between the two specified activities
Null Values: If either activity doesn't exist in a case, or if they occur in the wrong order, the value will be null

Example Output Values:

24.5 = 24.5 hours between the two activities
168.0 = 7 days (168 hours) between activities
null = One or both activities not found in the case

You can use this new attribute in:
